Detects and authenticates trains. Analyzes in real time the integrity of the pantograph and its carbon slide plate. Allows you to work independently of the type of train.

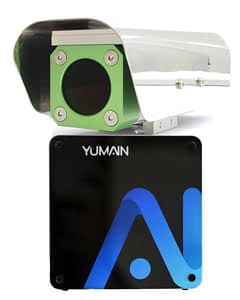

Pantograph condition monitoring solution

The Pantograph Condition Monitoring System provides automatic analysis of the condition of pantograph heads on railway rolling stock. The automated analysis of this system helps prevent incidents of catenary tearing, and also allows predictive maintenance of carbon slide plates.

  • The system operates at speeds of up to 140 km/h in most weather conditions

  • The alarm is processed and generated directly in the sensor. The information is then sent by different means

  • Two sensors above each track are required for optimum performance

  • The extremely compact size of the sensor makes it easy to install and integrate into the environment

The artificial intelligence embedded in the sensor provides the following advantages:

An autonomous product, allowing a simple set-up
Operates on trains in service, so there is no need for manual inspection
An affordable solution, allowing the multiplication of checkpoints on the rail network

OUR SOLUTION WON THE EMBEDDED TECHNOLOGIES TROPHY

On the 19th of January 2021, the E.C.S. Product with its pantograph detection and analysis solution won us the Embedded Technologies Trophy in the IoT Industry & Services category.



This Trophy was awarded to us by CEA-List, a partner that has been with us since our beginning and recognizes Yumain’s expertise in embedded AI.

trophée 1

PLAN TO PREVENT DAMAGE TO THE OVERHEAD LINES

Why a Yumain solution ?

Yumain’s fully scalable automated pantograph inspection system, using an AI (Deep Learning) based architecture, provides real-time alerts of faulty pantographs to any rail network operator. At each inspection point, the fixed sensor(s) capture high-resolution digital video images of each piece of equipment. At the same time, the engine number is also read automatically. Real-time analysis (< 5 minutes) is then performed, and an alarm is then generated if necessary, and transmitted by email.

  • Automatic detection and identification of the train by image analysis, or by using an external sensor.

  • Pantograph location (folded or unfolded)

  • Pantograph Integrity Analysis: Absence/Presence of Horns and Offset

  • Analysis of the integrity of the friction strip: scales, cracks and grooves. Homogeneity and thickness of the carbon slide plate

OUR ALERTS ARE RELIABLE

The device for automatic pantograph analysis is based on
on combining the use of robust and mature algorithms (RCNN mask),
as well as filters applied by image processing.

The Yumain solution is designed to be robust and industrial in order to respond to the major problem of overhead lines being torn out by defective pantographs.

Example of detection

OUR AUTOMATIC DETECTION DEVICE IS ECONOMICAL

Due to the compactness and simplicity of our solution, installation, calibration and implementation can be carried out by 2 people, and does not require any special equipment or machinery. This allows to reduce
considerably the cost of installation.

As the tariff per measuring point is up to ten times lower than more complex solutions, it allows a multiplication of control points (e.g. station entrances) on the national rail network.

OUR DISTRIBUTOR

OCS2 is a French company supplying equipment in the railway sector and catenary installations.

To contact OCS2:

Manager: Jérôme Anselme

ZA La Petite Champagne
14 rue des Cerisiers
21640 GILLY-LÈS-CÎTEAUX.

Email : j.anselme@ocs2.com

Phone : +336 7928 9281

www.ocs2.com

DOWNLOAD

Solution Sheet

Our certificates and operating instructions are available on request.

To do so, please go to the contact area by clicking here.

LEARN MORE

THE OPERATION OF THE DEVICE

To detect the non-conformity of a pantograph (read or not) on a train running under a sensor, the system will rely on the combination of image analysis and on-board algorithms based on artificial intelligence.

The arrival of the train will be identified either by image analysis (Sigma/Delta technology) or by an external sensor (the device allows 2 inputs per dry contact).

The train can be identified either by:

  • Reconciliation of the time-stamped event with the operator’s train schedule database.
  • The location and reading of the train identification plate (if located on the front)
  • Any other (radio) signal to authenticate the train

The location and analysis of all the pantographs (deployed or not) present on the engines is fully automatic and in real time (< 5 minutes). If an anomaly is identified, an alarm is immediately generated in the form of an alarm:

  • dry contact (2 outputs) to supply a local PLC.
  • a time-stamped email with photos of the faults
  • a complete message via FTP and Ethernet or wifi connection.

This information can also be stored and time-stamped for statistical purposes, but also to feed useful indicators to the QSE manager.

This solution, due to its fanless design, does not require any maintenance.

THE NECESSARY CONNECTIONS

This device includes all the elements necessary for its operation and installation: “Edge Computing” solution. In its basic version, it only requires an external power supply + connection to a 4G modem. A local connection to a customer’s processing unit is also possible.

THE DIFFERENT POSSIBLE POWER MODES

Due to the different possible layout configurations, the devices can be powered in several ways:

  • By permanent electrical network (240 VAC)
  • By a continuous power supply
  • By solar panel

A SOLUTION IN LINE WITH ENVIRONMENTAL IMPERATIVES

The sensor is intended for outdoor use (IP 57).

Night use of the device is not yet possible at this time

A FLEXIBLE INSTALLATION

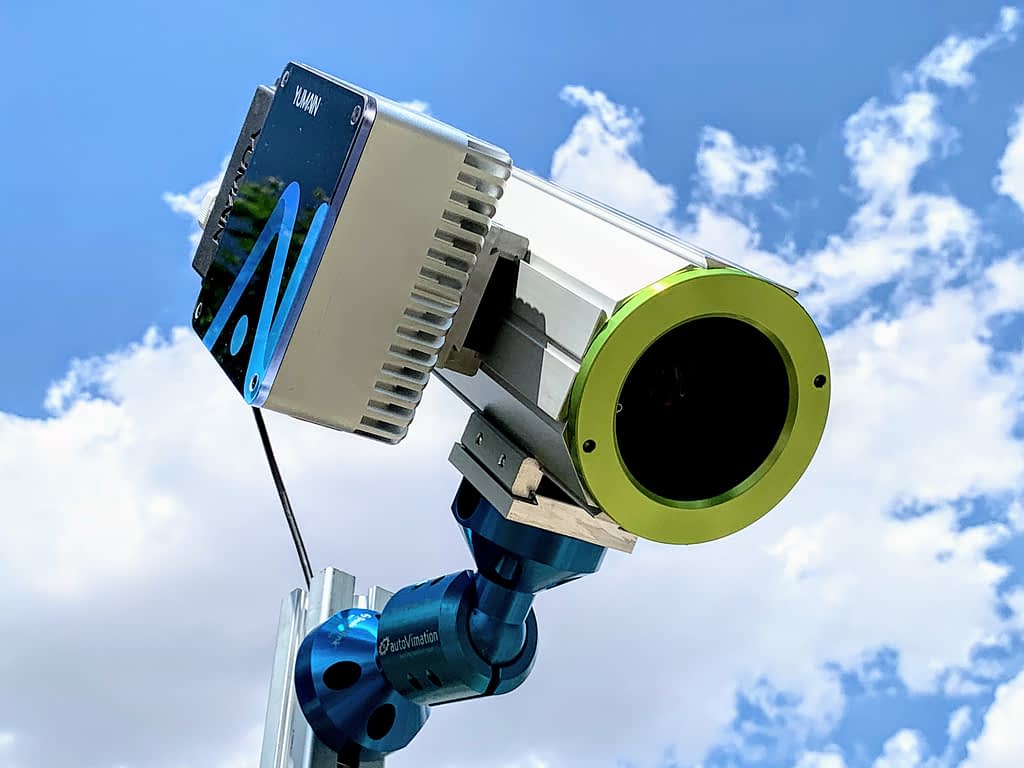

Thanks to technical developments, and the choice of a universal support type Ram-Mount™ (https://www.ram-mount.fr), the sensor can be installed on various supports.

Installation on a mast or on a bridge are the most commonly adapted solutions. Installation on a signalling gantry is also possible.
