Prevention of pedestrian/vehicle collisions

The main reason that motivates company managers to install this type of device is to ensure the protection of humans in the company’s environment, to secure the site and to interact in dangerous and accident-prone areas in order to adapt behaviour.

In addition, other motivations lead companies to equip themselves with our system:

Reduce the number of
accidents within the company.
Inform the drivers that one
or more persons have entered
their working areas.
Maintain productivity by
alerting only in case of danger.
Tranquilize employees
from potential collision hazards.

In addition, the collision risk detection system can also be used to meet other interrelated objectives:

  • Guarantee safety between walking personnel and mobile machinery.

  • To enforce the regulations in force in the company.

  • Establish a link between the regulations and the behaviour of employees in risk and accident-prone areas. Typically, when the device triggers an audible and luminous alarm, employees become aware that a person is potentially in danger.

  • Fight against the decrease in vigilance and the development of bad habits by visual and sound stimulation, or by blocking access to the danger zone.

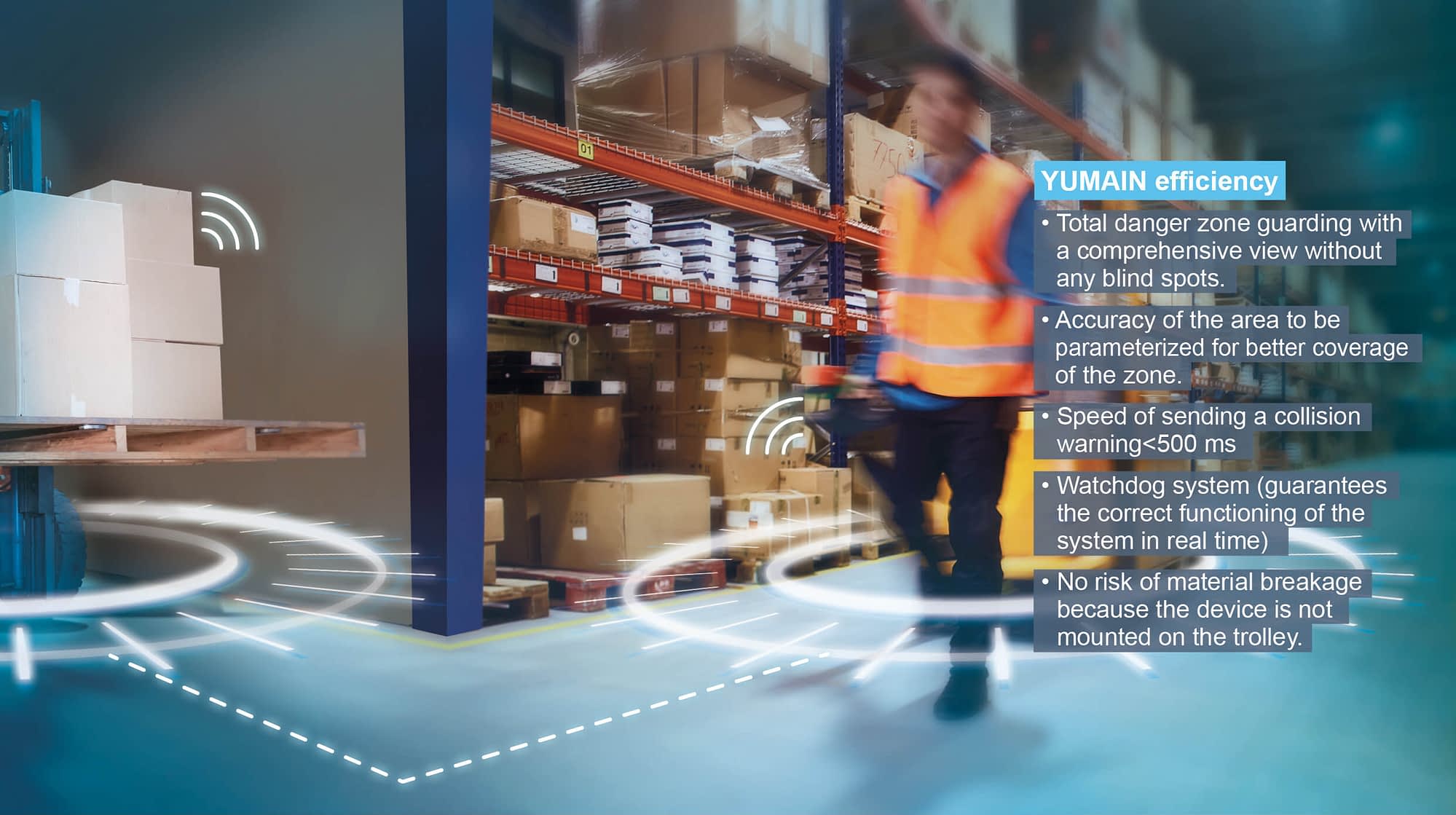

PLAN TO PREVENT,

Anticipate potentially dangerous situations.

Blue: configurable detection field
Red: pedestrian at risk
Yellow: forklift
Black: driver

OUR DEVICES ADAPT TO YOUR ENVIRONMENT

Because they are versatile,
compact and discreet, these warning and non-intrusive
devices can be installed near a variety of locations.

Nevertheless, they are very often installed near :

  • Dock areas

  • Crossings with a pedestrian way

  • Traffic lanes with a lack of visibility

  • Loading and unloading areas

OUR ALERTS ARE RELIABLE

The collision detection system is based
on the combination of our robust and mature algorithms
and filters applied by image processing.

Yumain’s solution is robust and industrial,
already tested by our customers and validated
in the field since months.

OUR COLLISION RISK DETECTION DEVICE IS ECONOMICAL

If your technical teams within your company can do it, our solutions are designed to be installed directly by them. This significantly reduces the cost of installation.

The average price of a complete sensor is between 3500 € HT and 5000 € HT (excluding installation) depending on the type of alert chosen (sound, voice, light).

Rental possibilities with purchase option are also available on request.

LEARN MORE

THE FUNCTIONNING OF THE ANTI-COLLISION DEVICE

To detect the simultaneous presence of a trolley and a pedestrian in a defined area, the system is based on the combination of image analysis and onboard algorithms based on artificial intelligence.

The image captured by the video sensor is processed in real time directly in the device housing and triggers an alert via one or more dry contact outputs. Alert devices are multiple, luminous, sound, voice, wireless, or any other solutions. These dry contacts can also be interfaced with the locking of access doors.

This information can also be stored and time-stamped for statistical purposes, but also to feed useful indicators to the QSE and CHCT manager.

As this solution is above all intended to be educational and preventive, the image is deliberately not stored. Nevertheless, a memorization of events (images) can be kept locally on request, or transmitted to a concentrator via an IP link. Precautions will then have to be taken on the GDPR aspects. This solution, due to its fanless design, does not require any maintenance.

A FLEXIBLE INSTALLATION

Thanks to technical developments, and the choice of a universal support type Ram-Mount™ (https://www.ram-mount.fr), the sensor can be installed on various supports.

Installation on a mast or on a wall are the most commonly adapted solutions. Installation on a gantry or scaffolding is also possible.

THE NECESSARY CONNECTIONS

This device includes all the elements necessary for its operation and installation: “Edge Computing” solution. In its basic version, it only requires an external power supply + connection to the light and sound device (“plug & play” concept). The connection to the cloud, or to the company network is unnecessary.

THE DIFFERENT POSSIBLE POWER MODES

Due to the different possible layout configurations, the devices can be powered in several ways:

  • By permanent electrical network (240 VAC)

A SOLUTION THAT MEETS GDPR REQUIREMENTS

This device, in its basic version, does not store or transmit any image, and is therefore not concerned by the PGRD Regulation.

SECURITY IS EVERYONE'S BUSINESS.

The employer is obliged to take all possible measures to ensure the safety and health of its employees.

The employee also has an obligation to take care of his or her own health and safety and that of all persons affected by his or her actions.

OUR SYSTEM IS BENEFICIAL FOR THE WHOLE COMPANY

User/operator trolley :

  • Maximum accident protection for people and infrastructure
  • Sense of increased security.

Productivity

  • Risk and cost reduction
  • Reduction of production interruptions
  • Strengthening the safety of internal transport

Management

  • Quick and simple implementation across the entire company infrastructure for a reduced budget
  • Lower operating costs
  • Reduction of costs related to accidents at work (200 to 1,500 euros per day)
