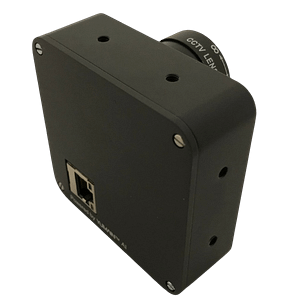

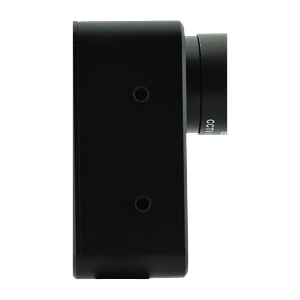

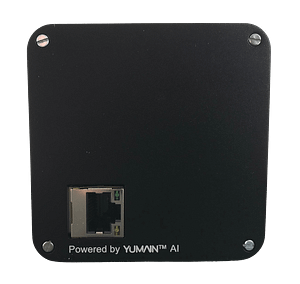

CAIMAN CAMERA

BIO-INSPIRED SMART CAMERA

The Caiman camera is an intelligent, self-contained, low-power sensor based on a bio-inspired model. This camera, like the human eye, can detect and extract the relevant characteristics of the observed scene.

Intelligent

At the cutting edge of technology,
the Caiman camera provides an operational
response for the detection
and recognition of objects.

Innovative

Thanks to its design inspired from the functioning
of the brain, the processing of the data embedded
in the camera mainly concerns the salient
information contained in the image.
The amount of data to be processed is
reduced by a factor of ten compared to
conventional solutions.

Autonomous

The Caiman camera does
not need to be connected to
the 4G (cloud) network,
the detection, processing
and transmission of results are embedded.

PRINCIPLE OF OUR SOLUTION

  • Image acquisition and processing from a 1920 x 1080 sensor @50fps

  • Elimination of 90% of irrelevant data

  • Easy adjustment, use and acquisition through a user interface

  • Fast interface (via user API)

  • Respect of the right to the image with the possibility of cutting the video flow

CONNECTION, ASSEMBLY

  • Space-saving case

  • Compact size 72 x 72 x 38.5 mm

  • M3 (front) and M4 (sides) threaded mounting

  • Low consumption

  • Ethernet communication

CHARACTERISTICS CAIMAN

Video sensor features
  • Cs lens mount (C compatible with the supplied optical ring)
  • Resolution :1920 x 1080
  • Acquisition speed: 50 fps
Features Communication
  • Ethernet connection
  • Connection standard: GigaBit ethernet – 1000 Base TX
GUI features
  • Language and libraries: C++, Qt5
  • API: Proprietary
  • OS
    • Windows 10
    • Ubuntu 18.04
Supply voltage
  • 48 VAC via POE
Consumption
  • POE 15W
  • POE Class 0
General characteristics
  • Power connector : RJ45
  • Communication Connector : RJ45 Connector
  • Weight : 230 g
  • Dimensions : 72 mm x 72 mm x 38.5 mm

Due to the evolution of standards and material, the characteristics indicated by the texts and images in this document are only binding on us after confirmation by our services.

SOLUTION POSSIBILITIES

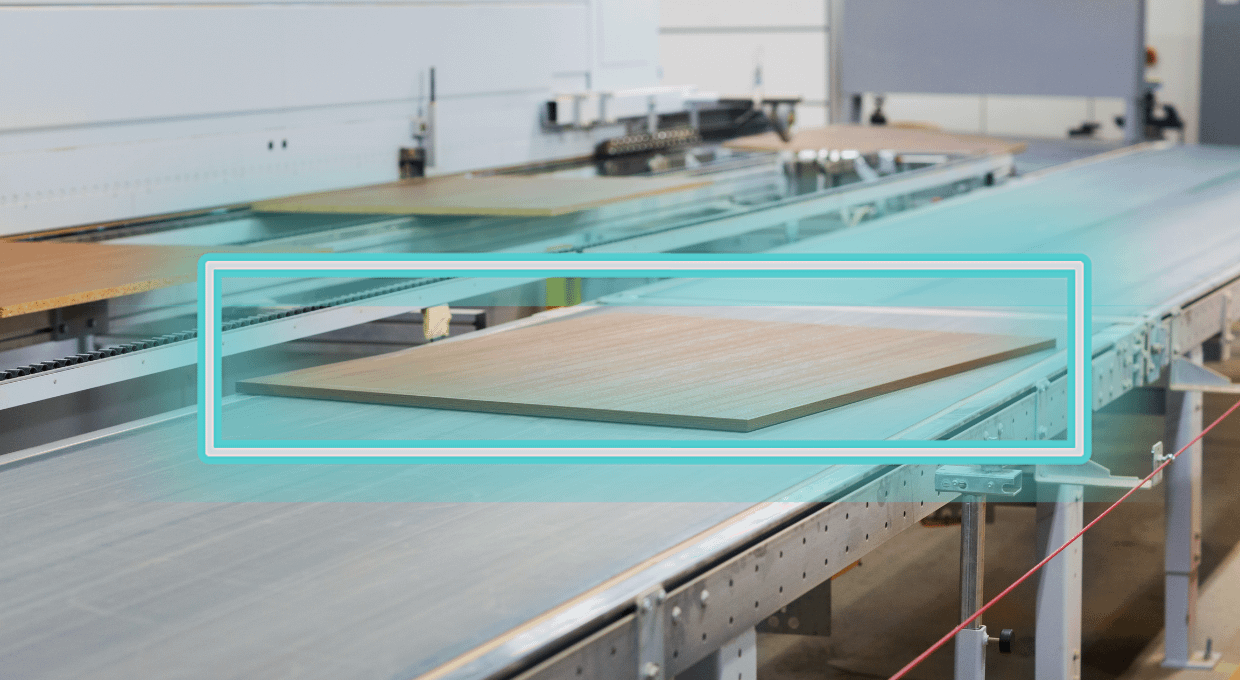

Quality control and surface inspection

DOWNLOAD

Technical sheet

Our certificates and operating instructions are available on request.
